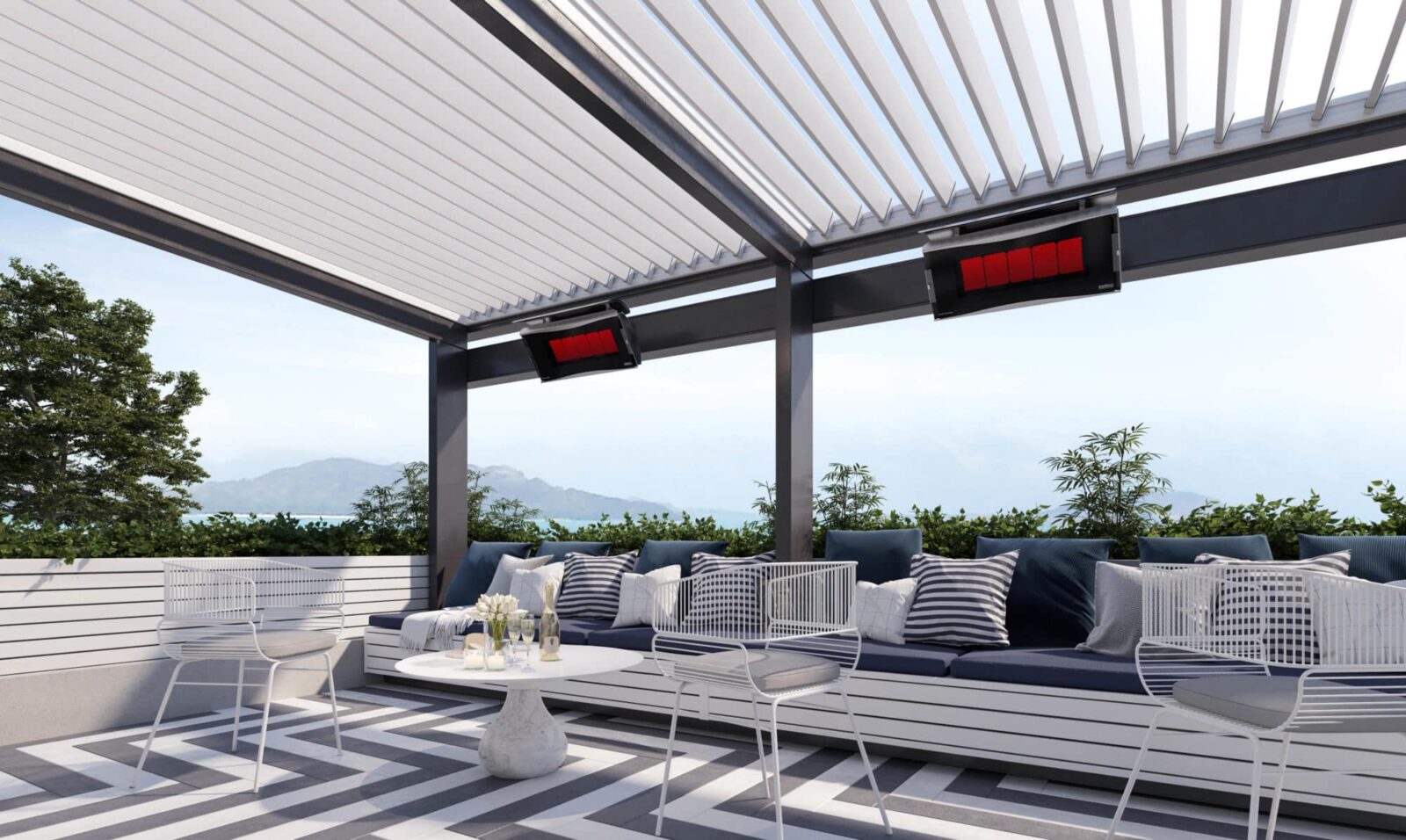

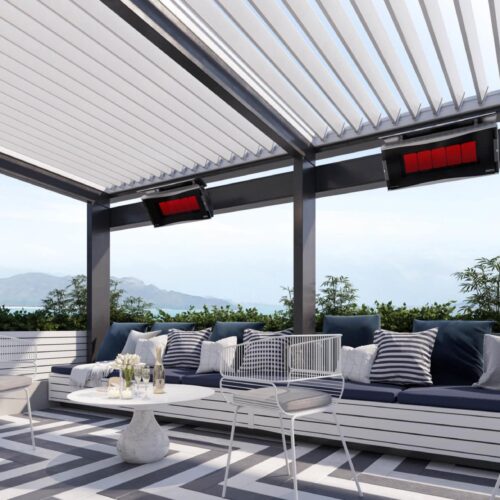

Platinum Gas Heater on Terrace

Platinum Smart-Heat™ Gas

Elegant design without compromises. The Platinum Smart-Heat™ Gas heater series features a signature ceramic fascia that provides efficient and comforting even heat distribution across a large area. Available in two sizes with a wide array of ceiling and wall mounting options.
Outdoor Gas Heater
  • More
    Close

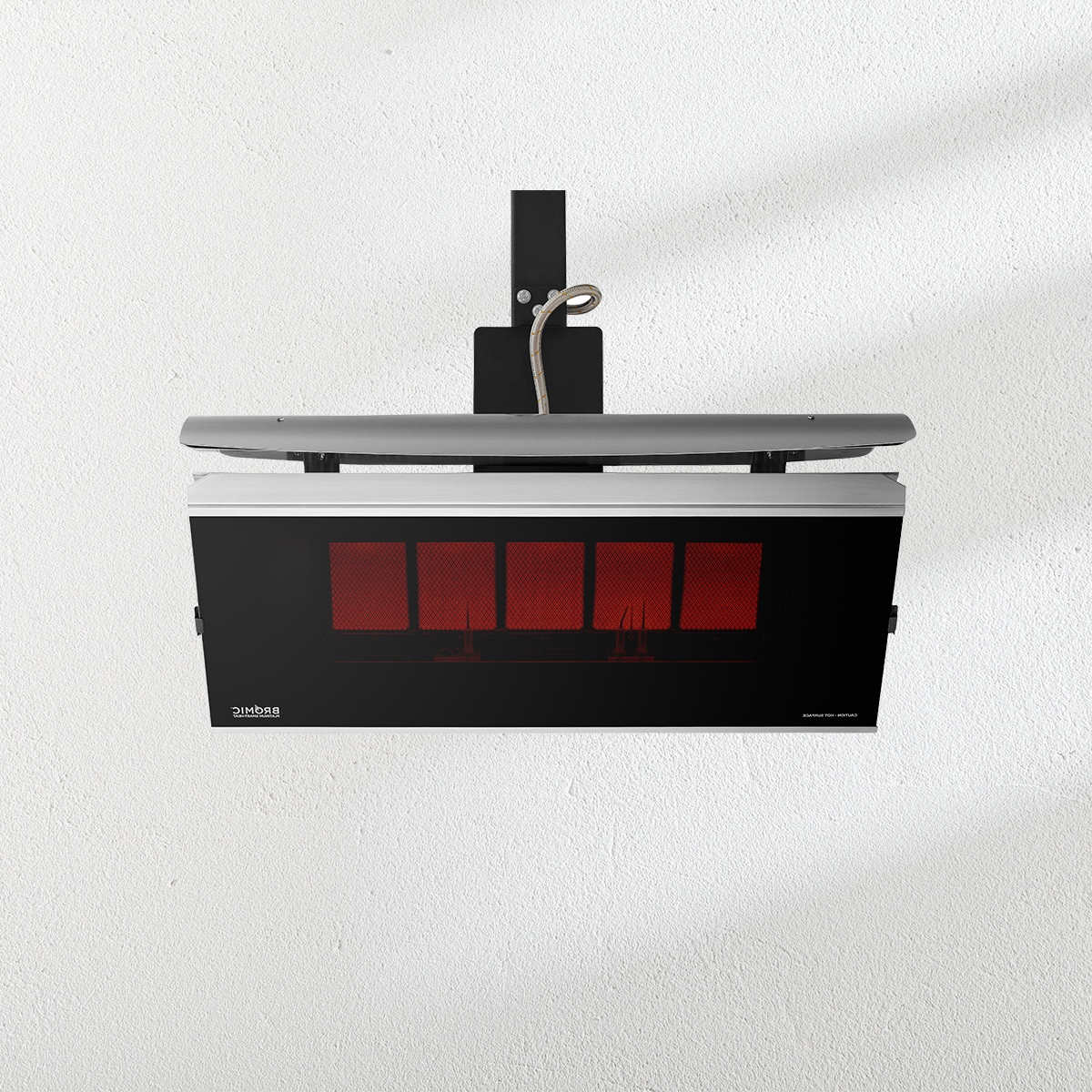

    Mounting Flexibility

    Wall or ceiling mounted options

  • More
    Close

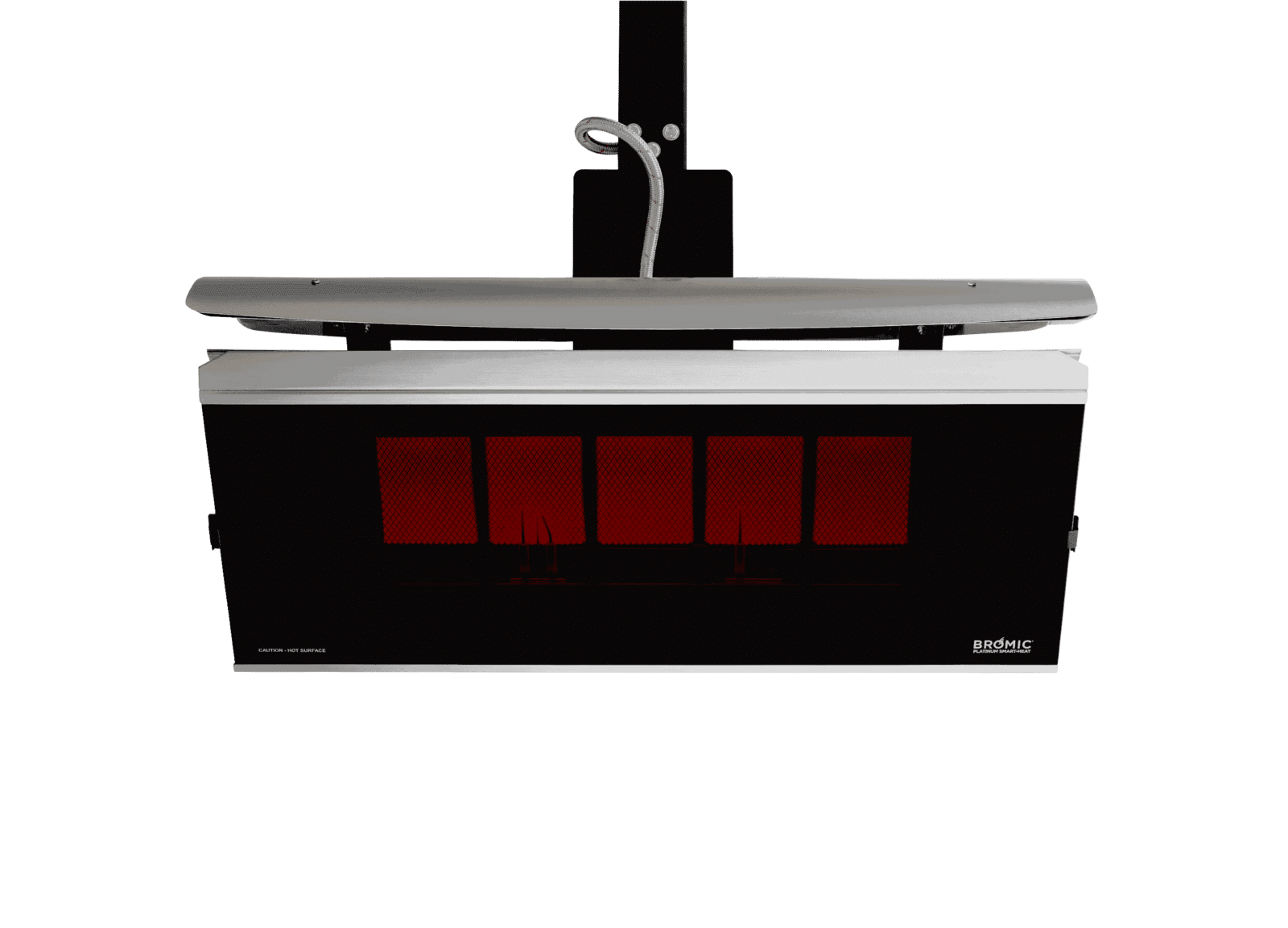

    Pivot Bracket

    Allows for directional and efficient heat distribution

  • More
    Close
    Premium Construction

    High performing stainless steel for long lasting and durable use

  • More
    Close
    Ultimate Wind Resistance

    Innovative patented technology ensures reliable function in wind speeds up to 20 km/h

  • More
    Close
    Environmental Efficiency

    Slow-release ceramic burners are supremely efficient and the most environmentally sustainable gas-fired heating method available.

  • More
    Close
    Unrivalled Coverage

    Project comfort evenly across a wide expanse while reaching deeply into open areas

  • More
    Close
    Patented Direct Ignition System

    Instantaneous ignition, whenever you require it, without the need for a pilot light

  • More
    Close
    Stylish Tinted Glass-Ceramic Fascia

    Spread comforting heat evenly across a large area

Specifications

Please reference the specification guide below to help you select the correct solution for your needs.

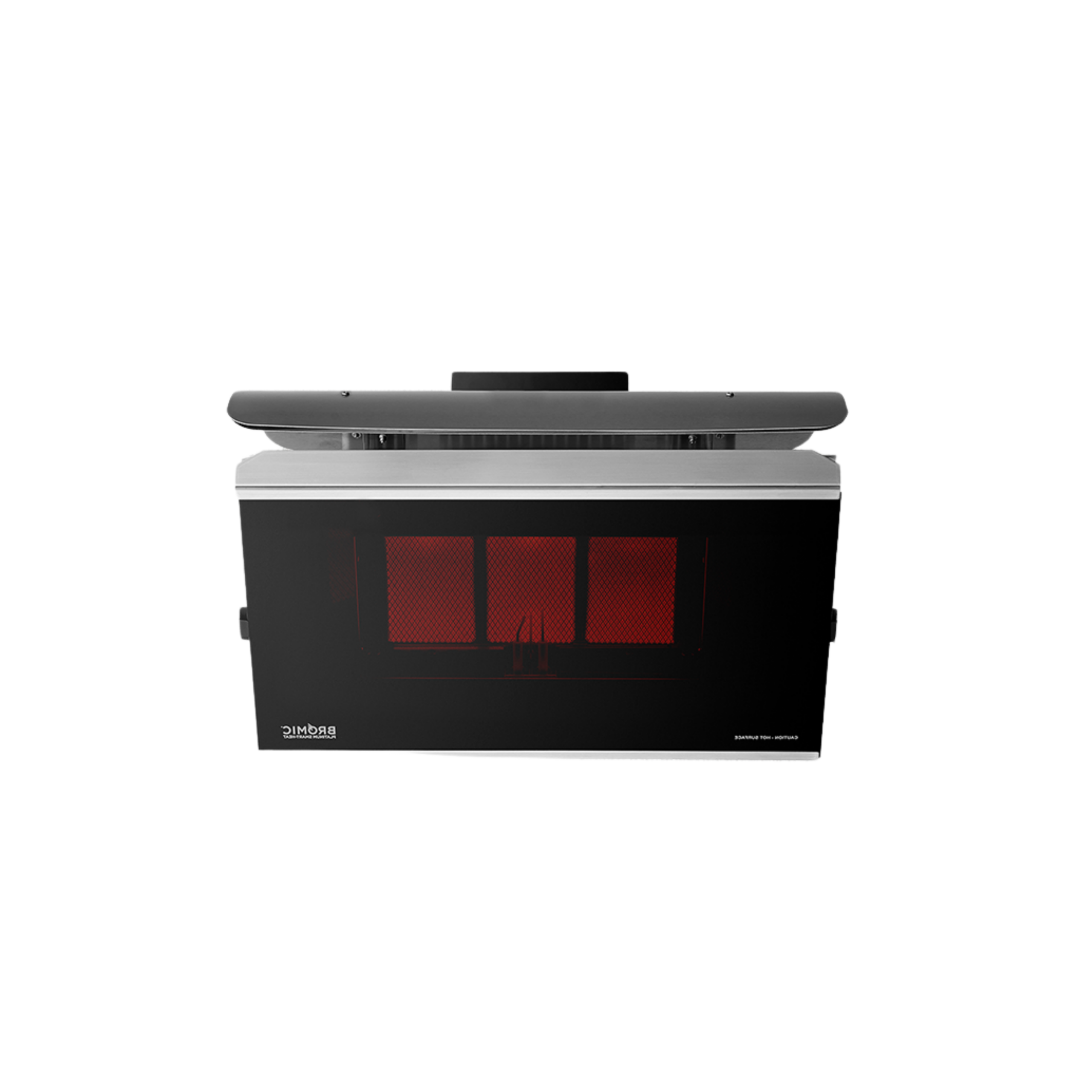

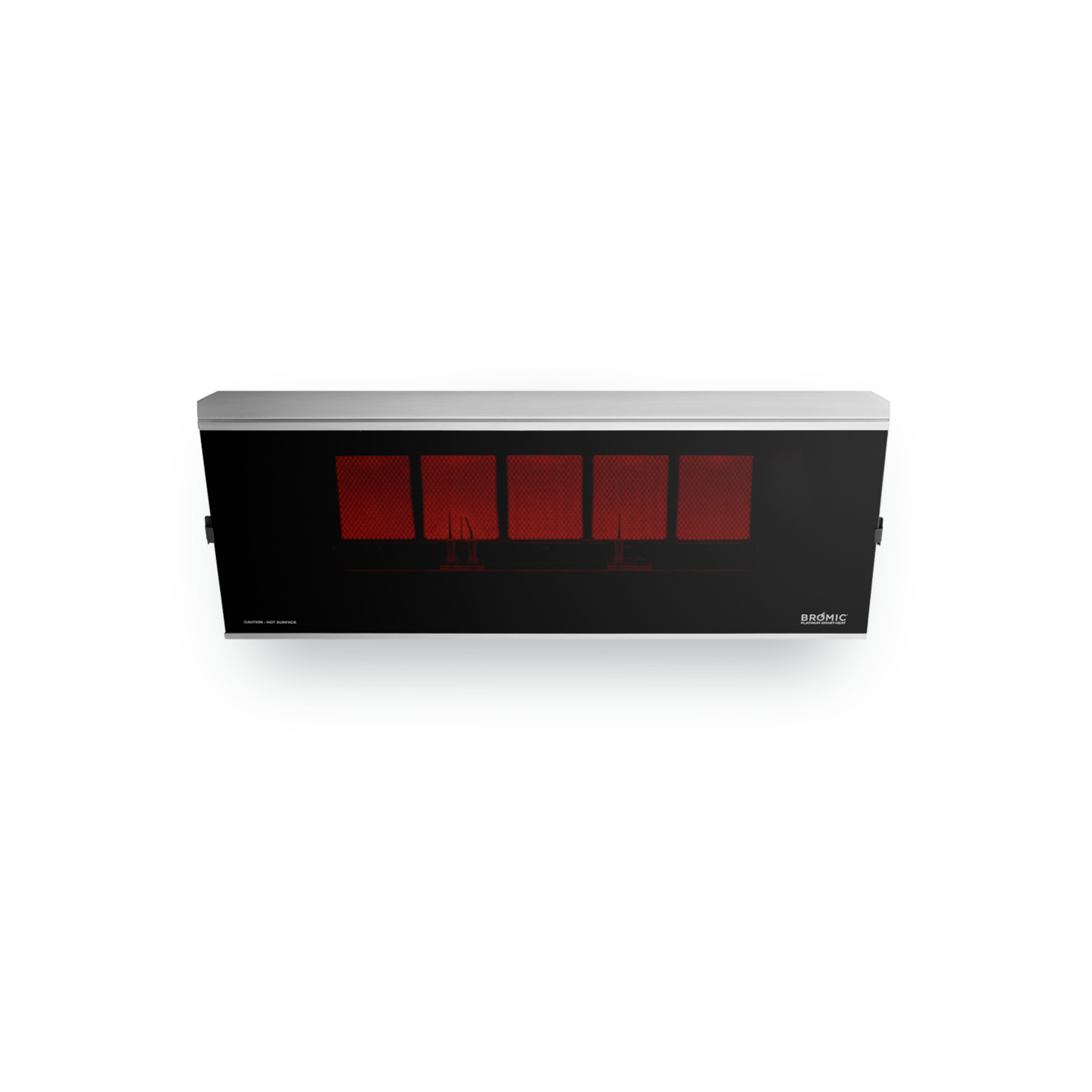

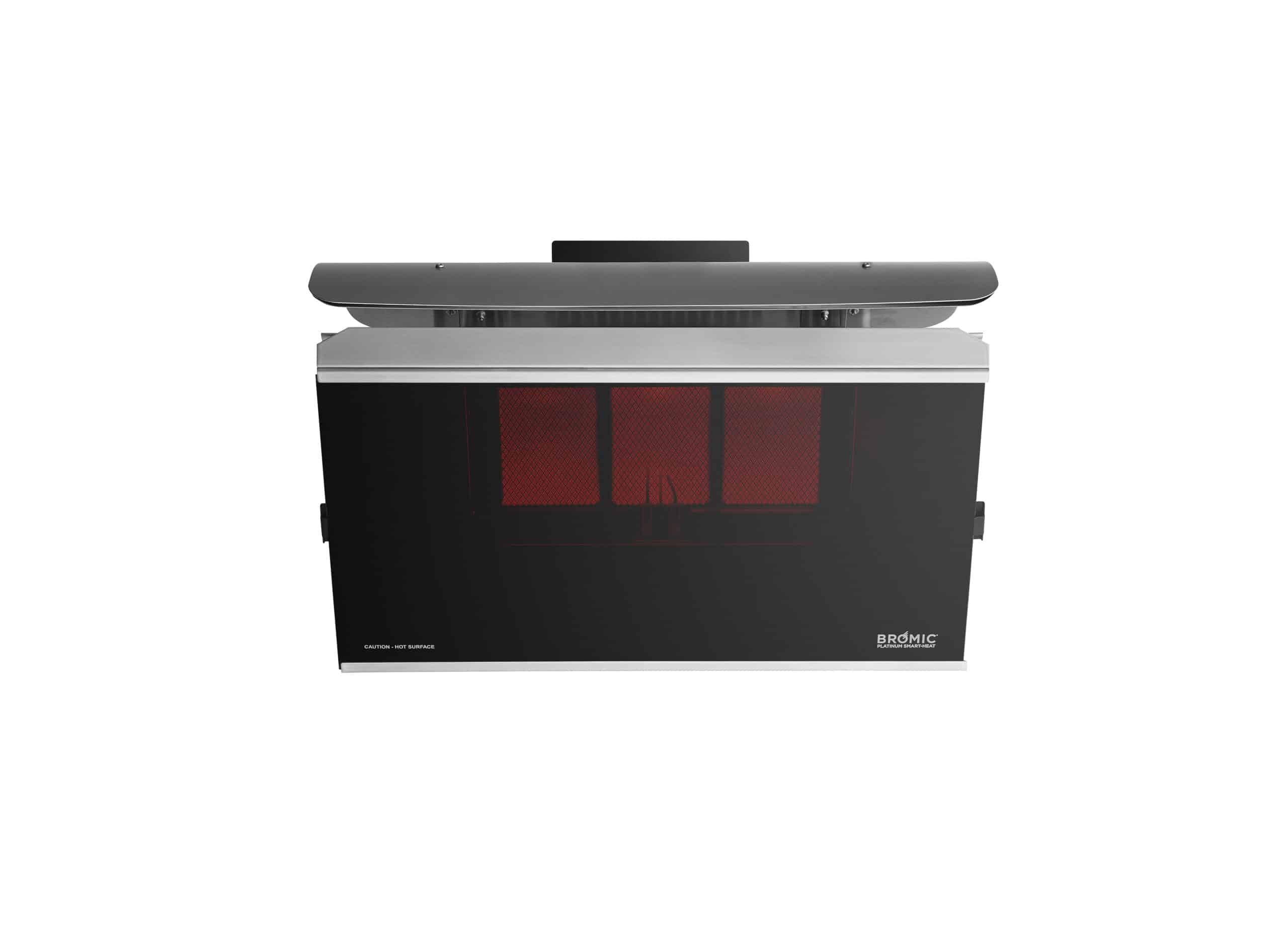

MODEL NUMBER 300 SERIES 500 SERIES
FUEL TYPE LPG | NG LPG | NG
COLOUR BLACK | STAINLESS BLACK | STAINLESS
HEAT AREA 15m2 20m2
RATED CURRENT 110V/2A 110V/2A
MINIMUM FLOOR CLEARANCE 2000mm 2000mm
OUTPUT 25 MJ 42 MJ
Downloads

Dimensions

Heat Blooms

Mounting Options

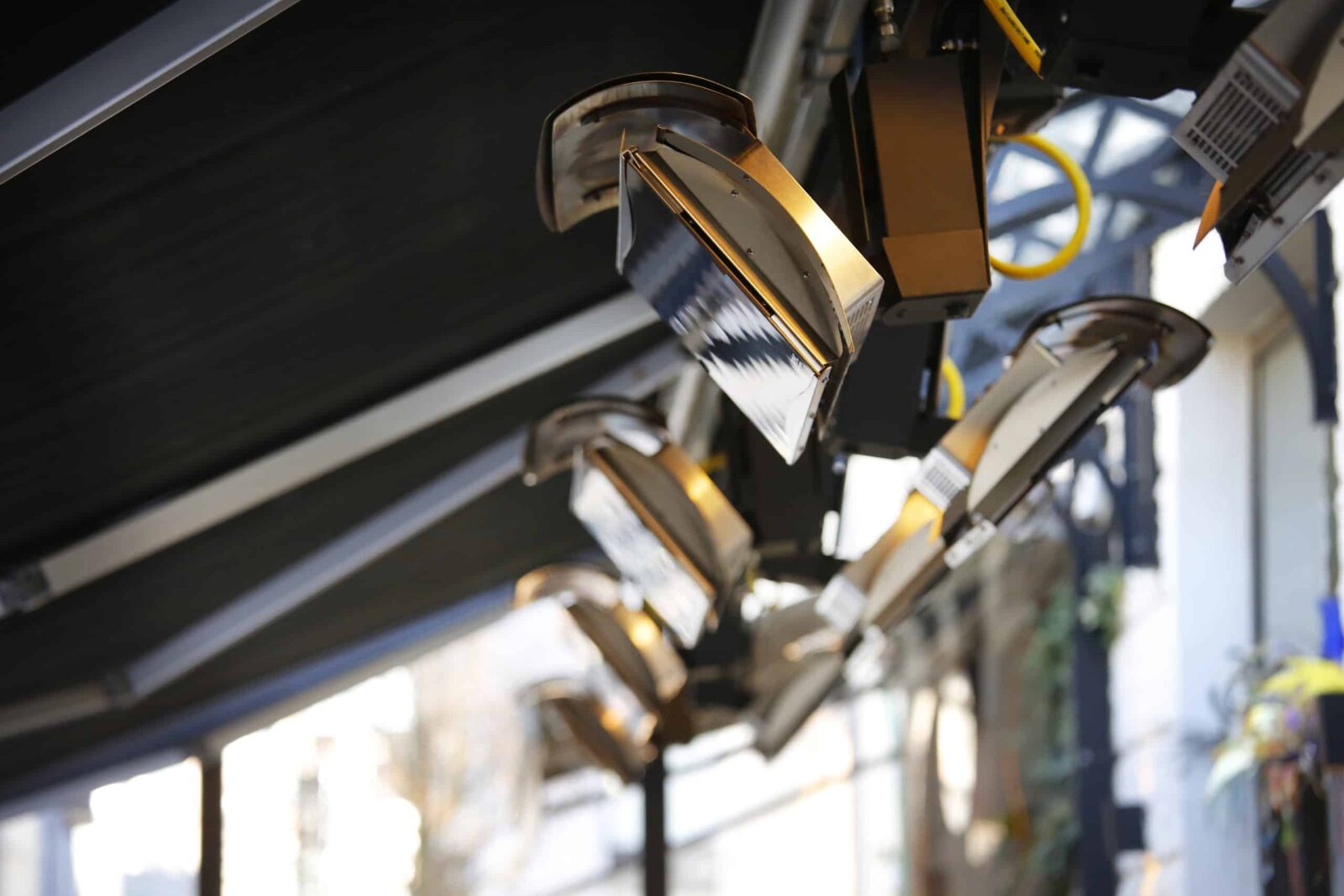

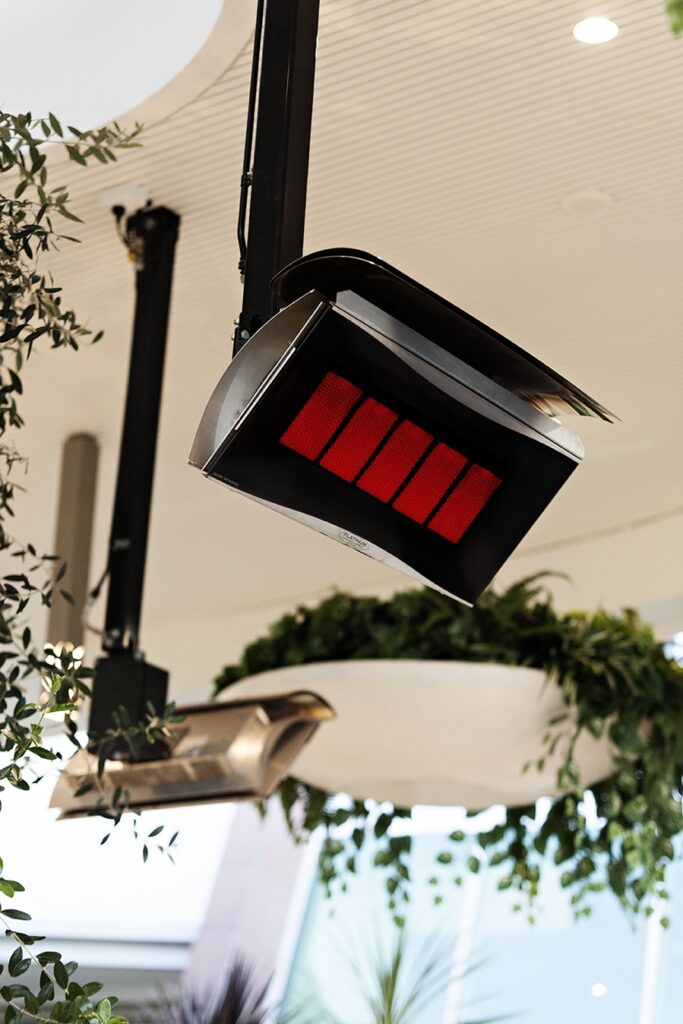

Bromic Platinum Gas heaters can be wall-mounted or hung from the ceiling (with optional Bromic Ceiling Pole Mounts). The optimum height is 2400mm from the floor to the bottom of the heater. If the distance above the heater is less than 1100mm or if the heater will be open to the elements, we advise to use a Bromic Heat Deflector.

Clearances

Installation

Installation must be carried out by a licensed and authorised technician in accordance with local building codes. Please refer to our clearance requirements and consult the installation manual for further details.

Downloads

BIM Files

To download BIM files, fill out the form below:
This field is for validation purposes and should be left unchanged.

FAQs

What is supplied with the mounted gas heaters?

All our Smart-Heat gas heaters come with wall mount brackets. Ceiling poles, deflectors and controllers can be purchased as additional accessories.

Can I install the heater myself?

No, our Bromic Smart-Heat gas heaters need to be installed by a licensed technician.

Do the gas heaters require an electrical supply?

Yes, these heaters have an electric ignition which requires an electrical supply.

How can I control the heater?

We recommend adding the Bromic On/Off controller and wireless remote, so the heater can be turned off and on from the comfort of your home. Alternatively, the heater can also be controlled via a standard wall switch.

Can I adjust the heat output on the gas heaters?

Our gas heaters are on/off only. If you're looking for a dimmable option, the we would recommend our Bromic electric heaters, which allow for more precise control over the heat output.

Is the heater supplied with a heat deflector

No. Heat deflectors are available as an additional accessory.

Does the heater come with a cover?

No, we do not offer cover for our fixed installed heaters as these present a fire-hazard as there is a risk the heater might get accidentally switched on with the cover on.

Can this heater be connected to a smart home or building automation system?

Yes, the heater can be connected to smart home and building technology, provided the system has been fitted with a RS232 port. For this, you require our On/Off Controller and our Bromic Smart-Heat Link RS232 plugin.
