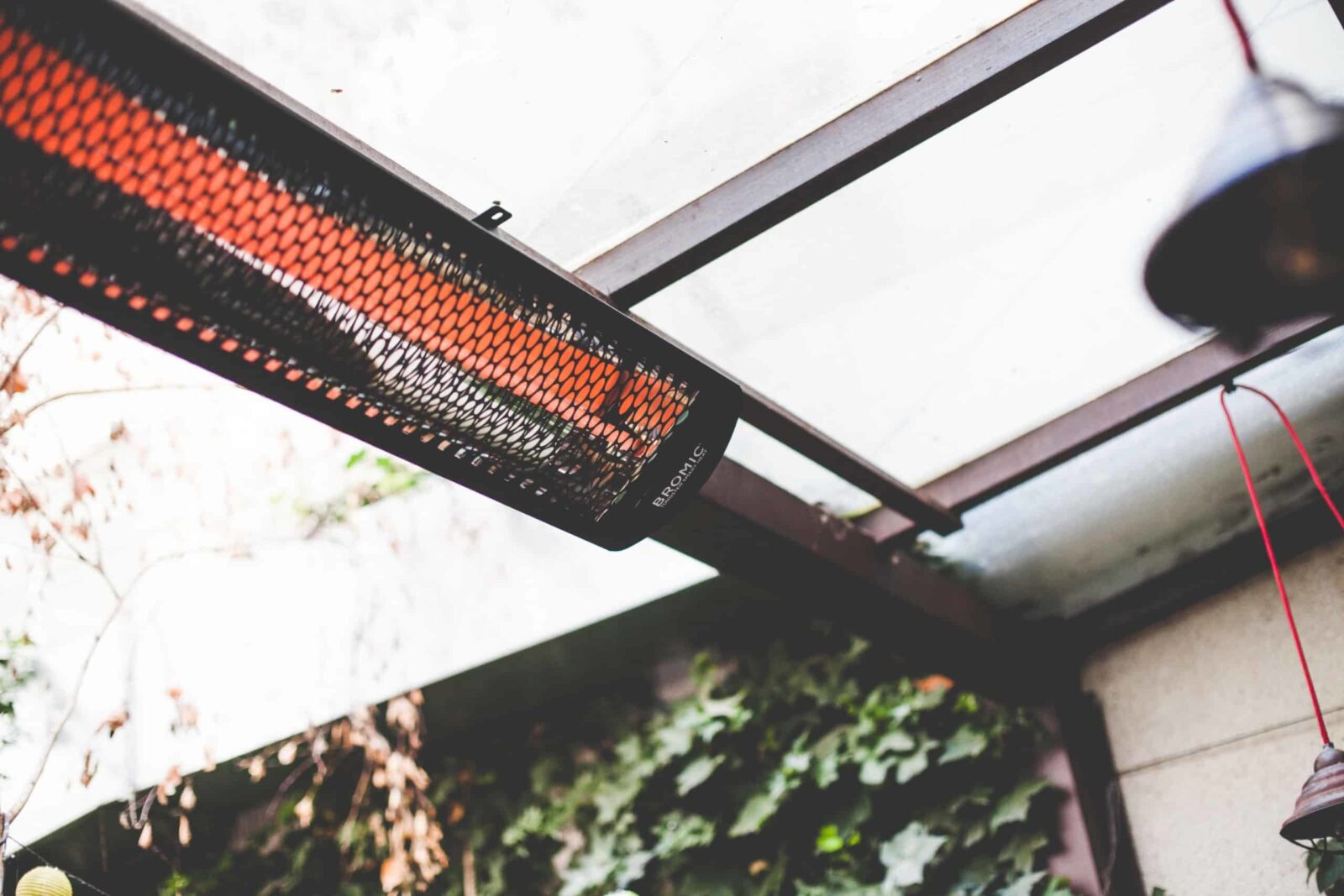

Electric Outdoor Heater Ceiling Mounted in Cafe

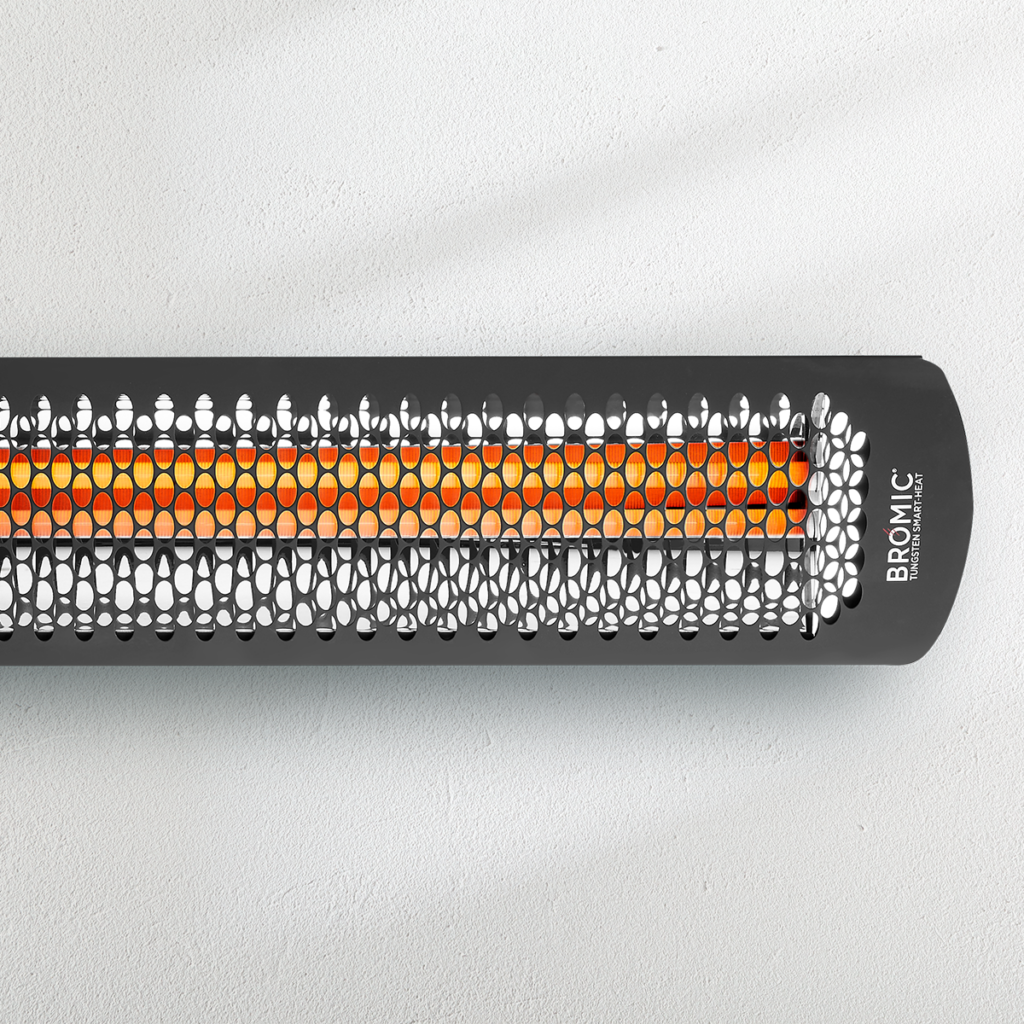

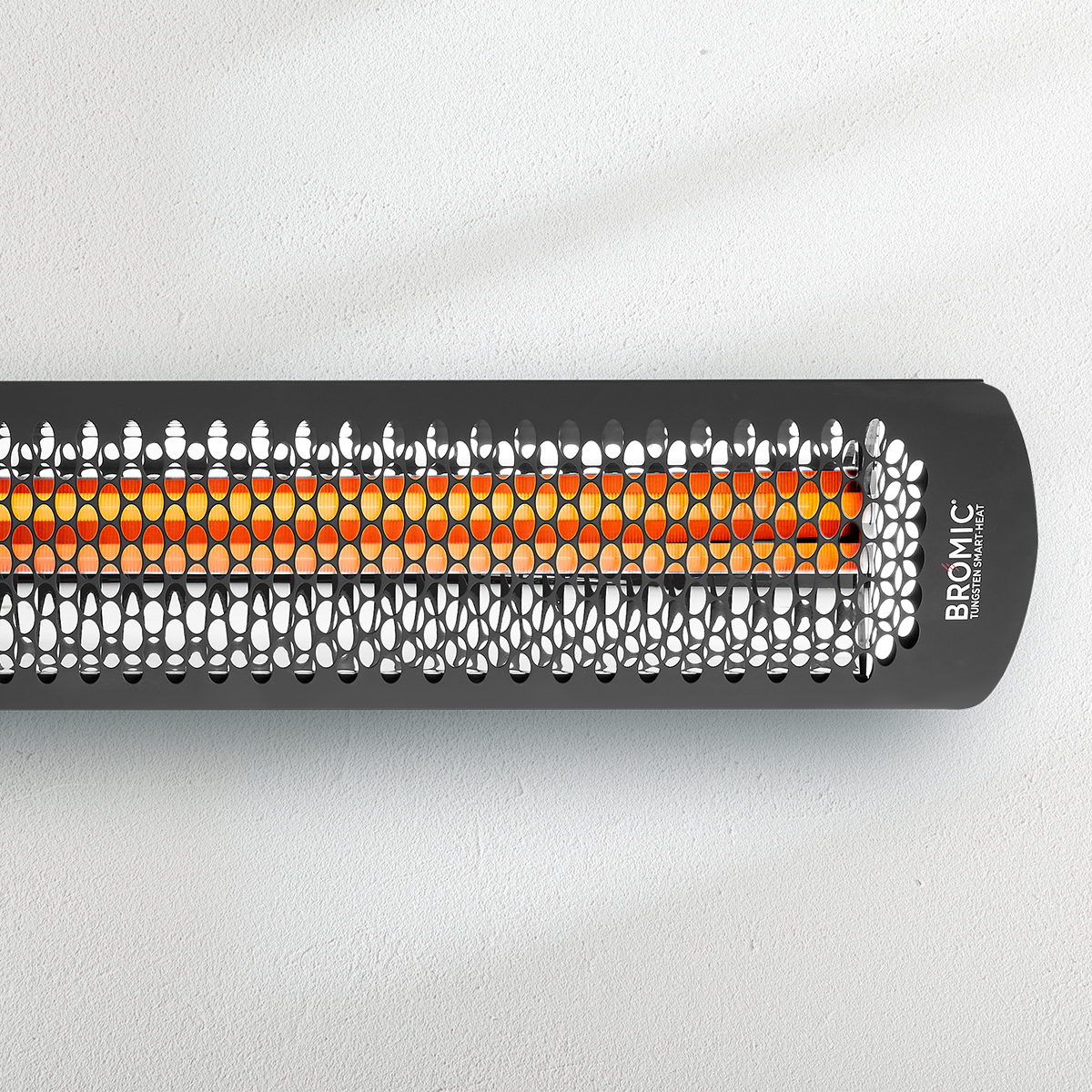

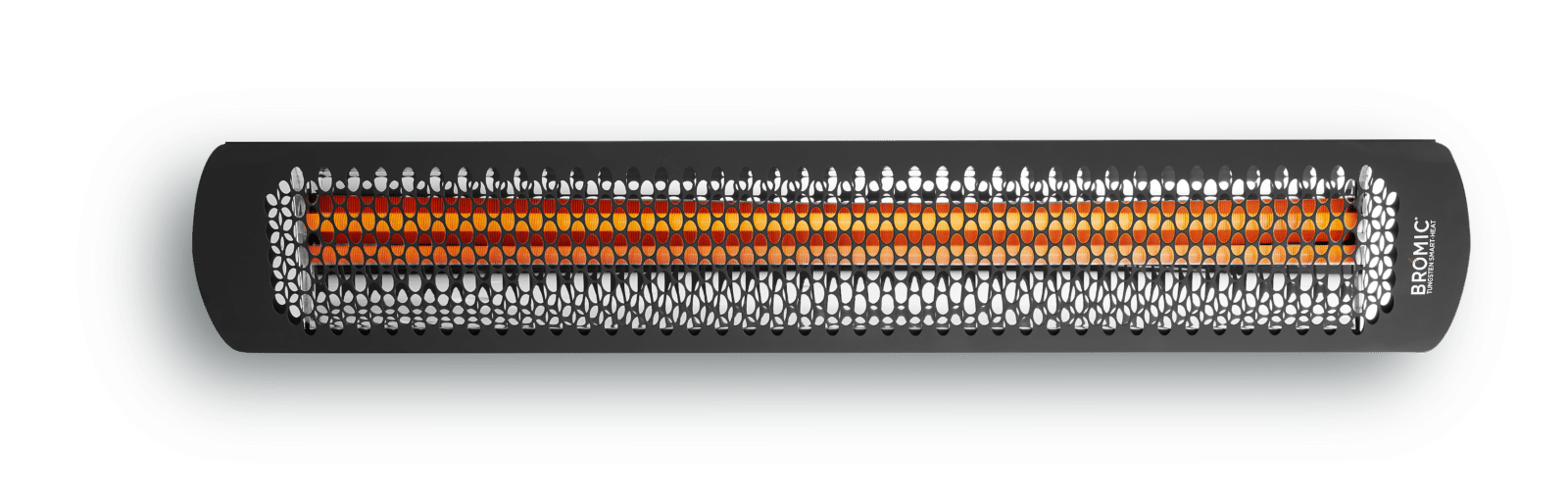

Tungsten Smart-Heat™ Electric

Durability meets power. The Tungsten Smart-Heat™ Electric heater series offers high- performance radiant heating to outdoor and semi-enclosed spaces with a durable, industrial design style.
Electric Outdoor Heater
  • More
    Close
    Durable Design

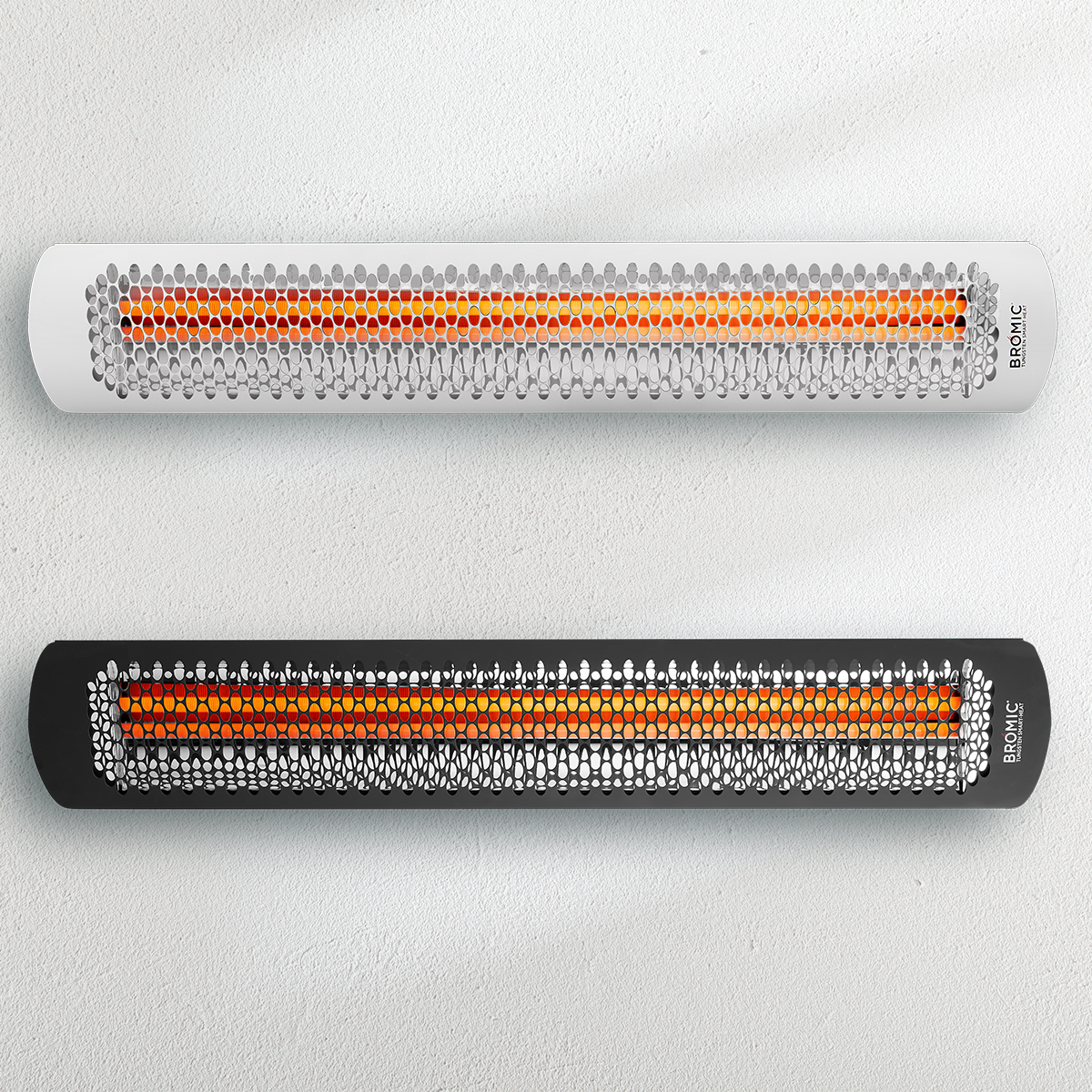

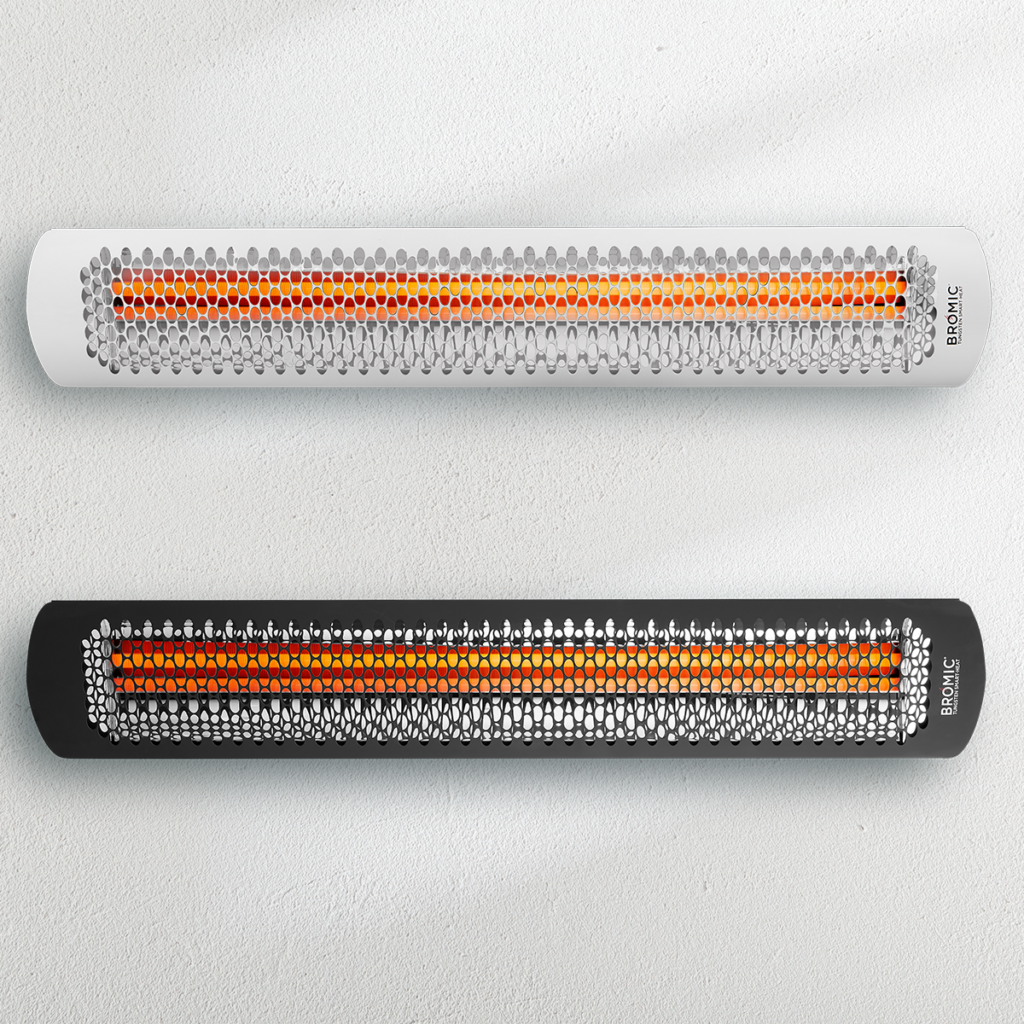

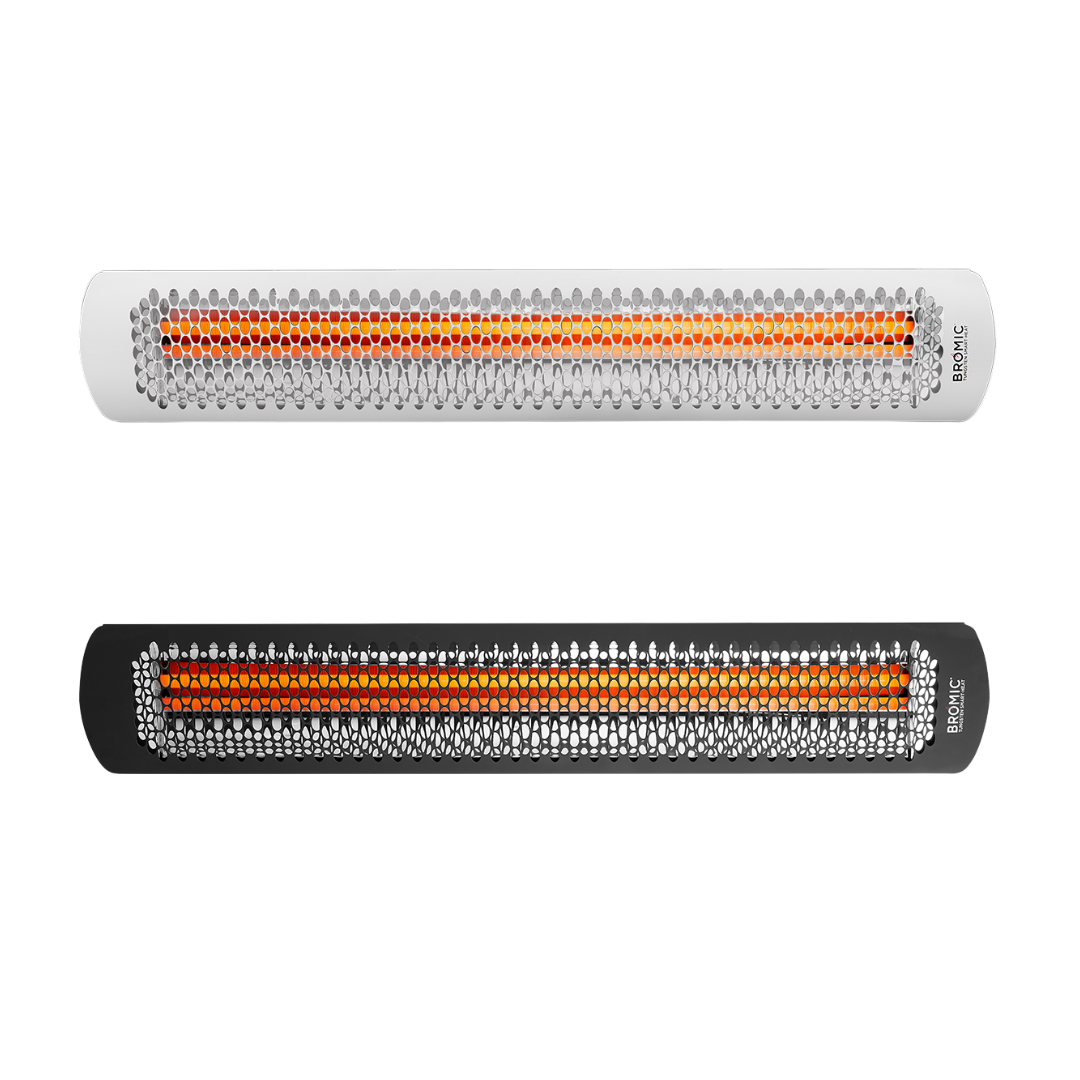

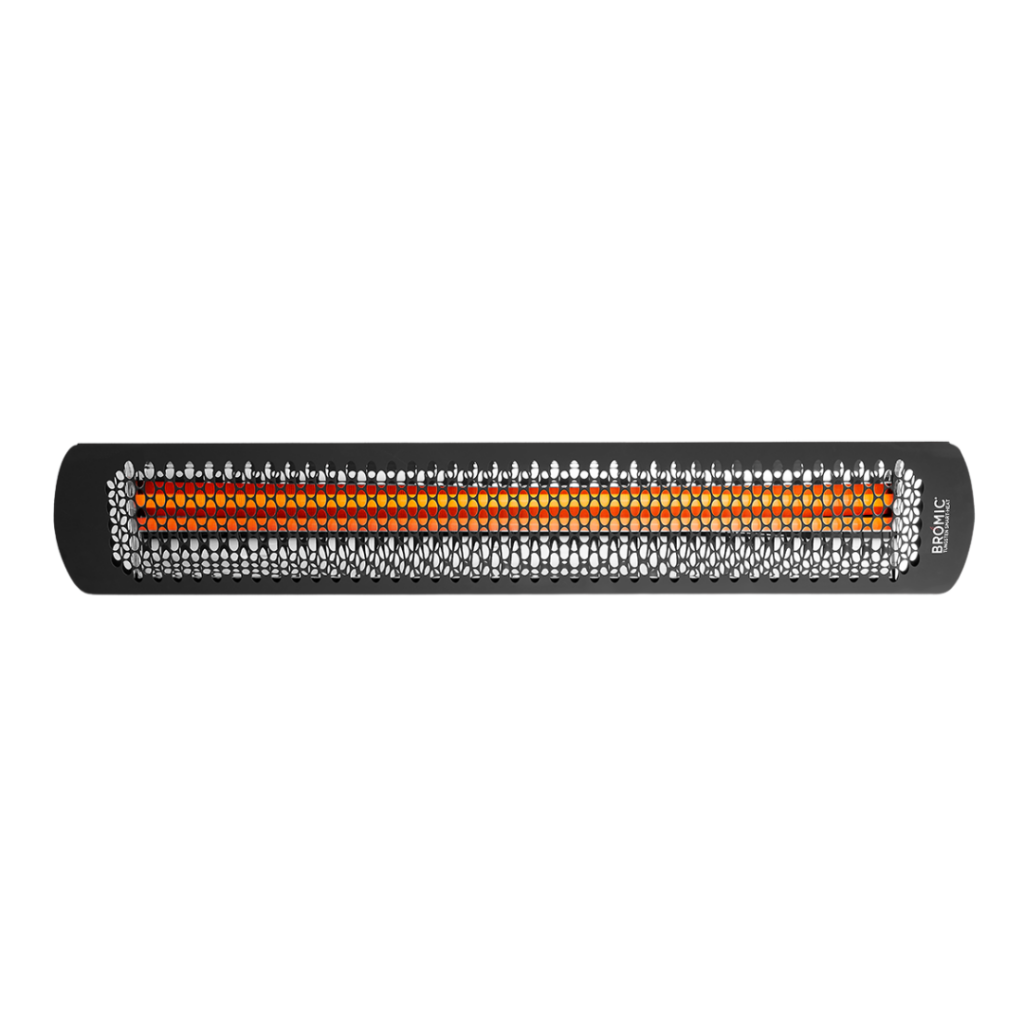

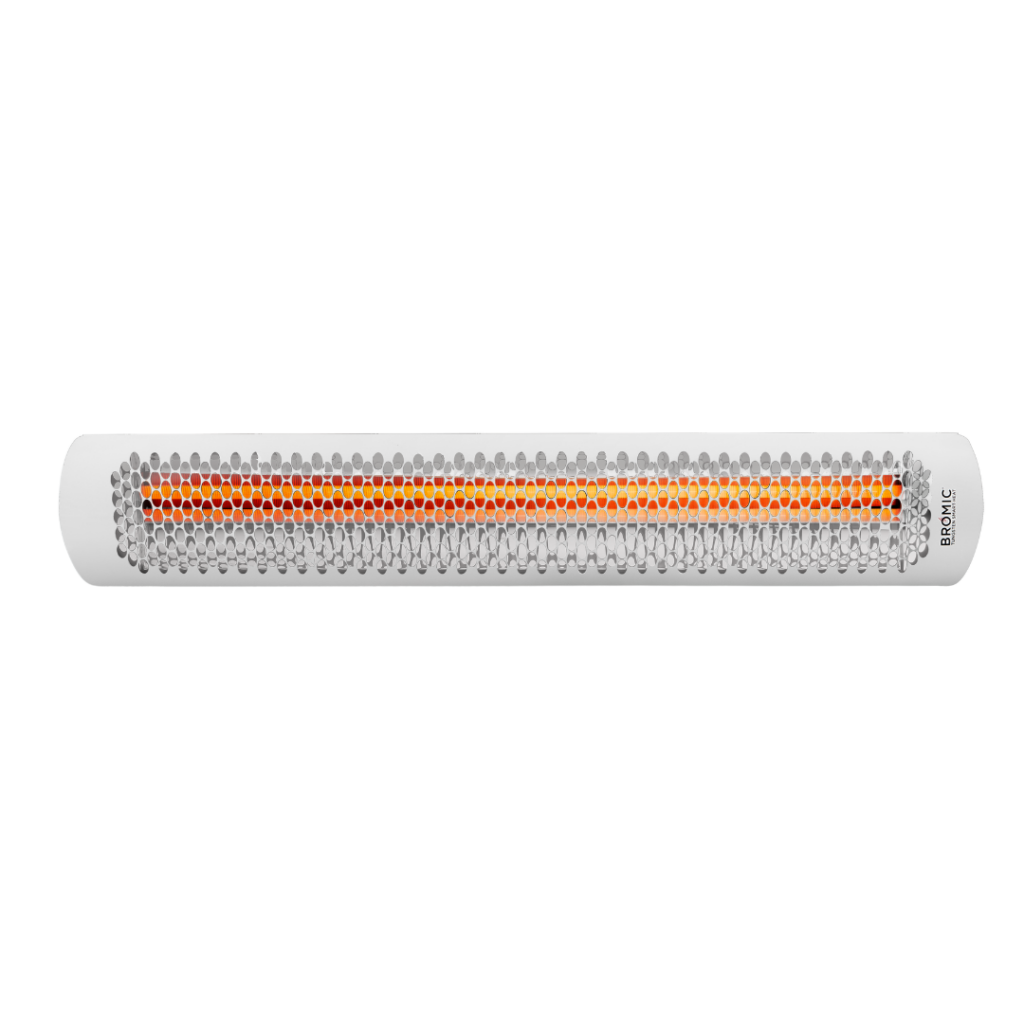

    Matte Finish Stainless-Steel construction for reliable heating performance and durability, with the choice of corrosion-resistant black or white finishes.

  • More
    Close
    Precise Directional Heating

    Accurately alter heat coverage as required with a simple bracket adjustment.

  • More
    Close
    Unique Design

    Honeycomb fascia facilitates precise heat distribution.

  • More
    Close
    Patented Performance

    Superior wind resistance.

  • More
    Close
    High Qaulity Quartz Element

    A thick steel coil housed in translucent fused quartz is durable and offers high-output heat.

  • More
    Close
    Parabolic Specular Reflector (PSR)

    Maximises performance and efficiency by directing potentially lost infrared energy back towards the target via a mirror-finish anodized rear reflector.

Specifications

Please reference the specification guide below to help you select the correct solution for your needs.

MODEL NUMBER 2000 SERIES 3000 SERIES 4000 SERIES 6000 SERIES
FUEL TYPE ELECTRIC ELECTRIC ELECTRIC ELECTRIC
COLOUR BLACK BLACK BLACK | WHITE BLACK | WHITE
HEAT AREA 6m2 9m2 12m2 15m2
RATED CURRENT ** 240V/8.3A

277V/7.22A

240V/12.5A

277V/10.83A

240V/16.6A

277V/14.44A

240V/25A

277V/21.66A

MINIMUM FLOOR CLEARANCE WALL 1800mm

CEILING 2400mm

WALL 1800mm

CEILING 2400mm

WALL 1800mm

CEILING 2400mm

WALL 1800mm

CEILING 2400mm

CONTROL OPTIONS
ON | OFF
DIMMER REMOTE
MASTER REMOTE *

* Independently control up to six zones of heaters with unlimited heaters per zone from a single control. Please note a dimmer controller is required. Control operates within 30m of heaters.
** Available in varying voltages: 240V and 277V

Downloads

Dimensions

Heat Blooms

Mounting Options

Clearances

Installation

Installation must be carried out by a licensed and authorised technician in accordance with local electrical codes. Please refer to our clearance requirements and consult the installation manual for further details.

Downloads

BIM Files

To download BIM files, fill out the form below:
This field is for validation purposes and should be left unchanged.

FAQs

How is the heater controlled?

The heater can be either hard-wired or controlled with our Bromic Smart-Heat On/Off or Dimmer controls.

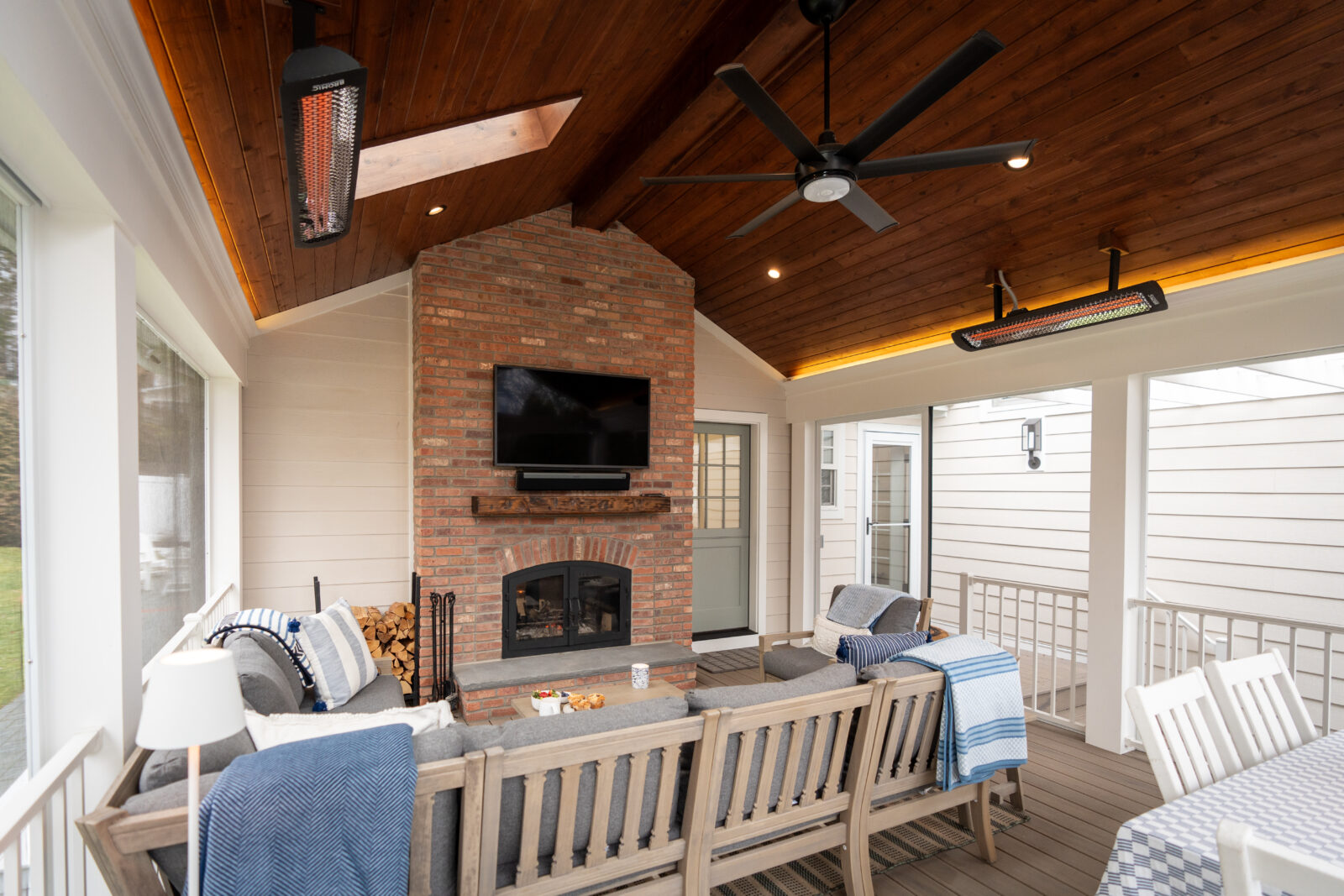

What clearance do we need from adjacent ceiling fans?

The heaters require a 900mm minimum side clearance from combustibles.

Does the heater come with ceiling brackets?

Yes. It comes with two brackets that can be used to secure the heater to either a wall or ceiling. We also offer a ceiling recesses kit for a more flush-mounted aesthetic.

Are the heaters adjustable in temperature and output?

The 4000 and 6000W versions of the Tungsten Electric come with two heating elements, which can be controlled separately to adjust the heat output as required.

Are the heaters waterproof?

The Tungsten Electric series has a IPX4 water ingress protection rating. Although our heaters are made from premium materials and engineered for longevity, we recommend that they are best mounted under cover and not directly exposed to rain, snow and salt mist to ensure they maintain their aesthetic appeal.

What Our Clients Say

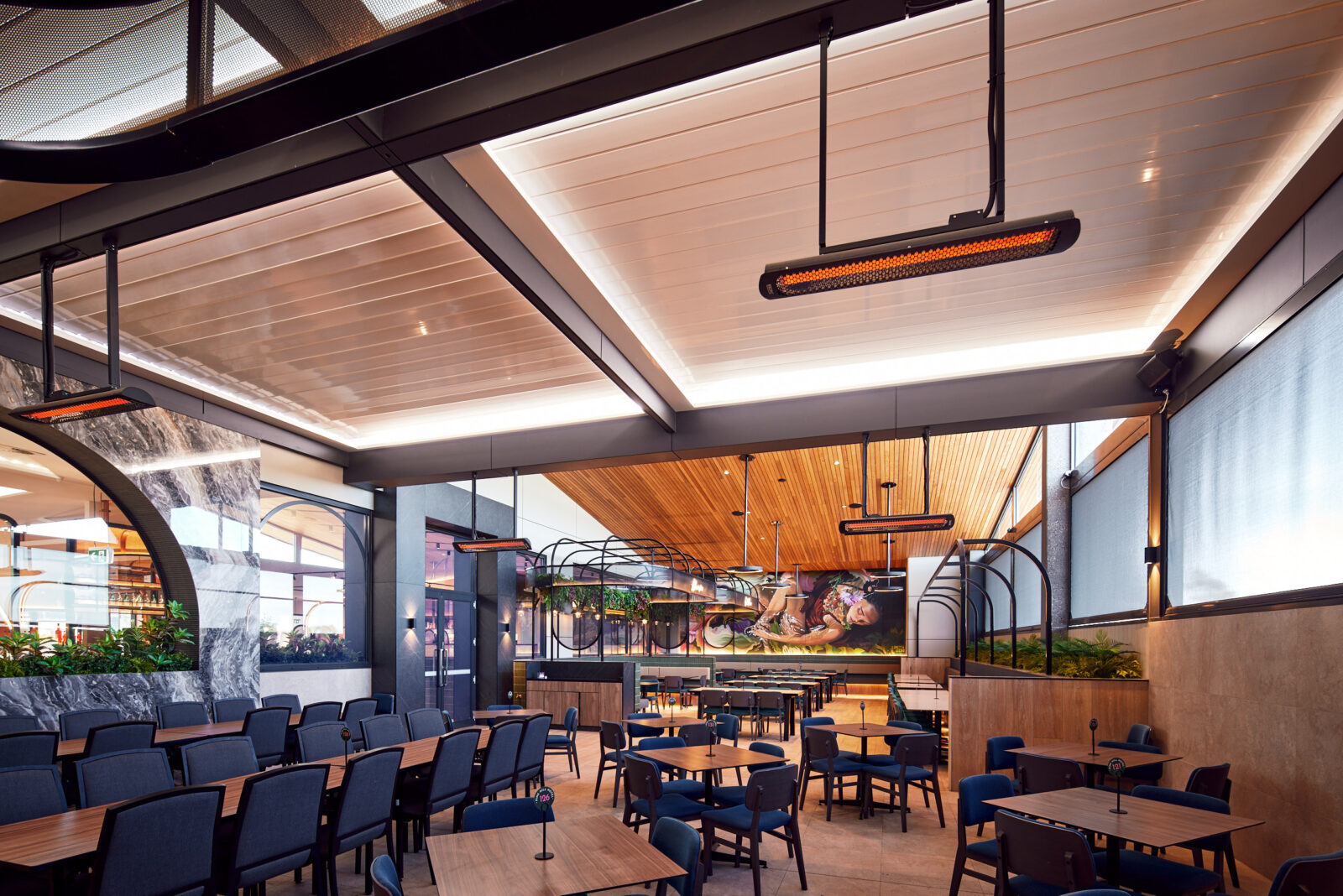

Electric Outdoor Heater in Brisbane Restaurant
★ ★ ★ ★ ★
